Topic: MPC-HC + MADVR + SVP doesn't render 10bit HEVC

Hello, I just installed SVP 4 Free edition on my main machine (core i7 2600k 4.7ghz, GTX780TI, 16GB ddr3) and I noticed that every time I try to play a 10bit HEVC movie on MPC-HC (installed by SVP 4 installer) it does not render the video, it has audio though, is this a codec problem of some sort (I'am very noob when it comes to video/playback settings, I'm sorry)?

I've also noticed that when I try to play 10bit HEVC on MPC-HC, madVR and ffdshow DO NOT launch automatically as usual, it launches Haali Media Encoder instead, is this meant to happen?
I had SVP 3.1 installed on this machine before, so I think Haali comes from that, not sure if it is necessary anymore or if it is safe to uninstall. I can provide screenshots of settings used between MPC-HC/madVR/ffdshow (they're basically default really)

Every program is updated. Any help is greatly appreciated.

Post's attachments

Capture 15.JPG, 51.91 kb, 534 x 414
Capture 15.JPG 51.91 kb, 572 downloads since 2016-10-29

  • MAG79
  • SVP developer
  • Offline

Re: MPC-HC + MADVR + SVP doesn't render 10bit HEVC

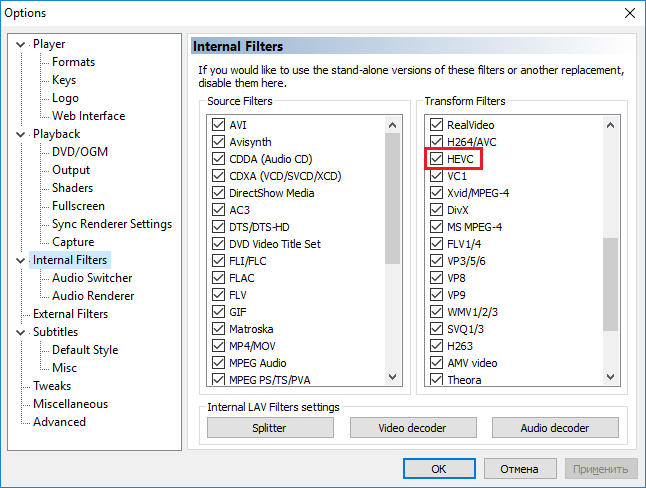

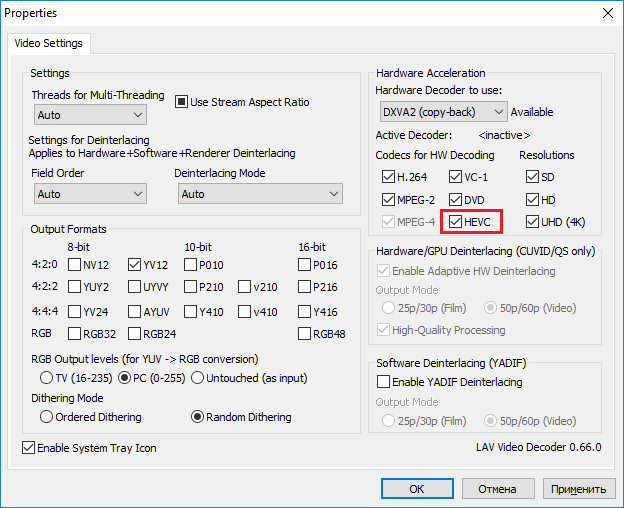

You need to enable HEVC in LAV builtin to MPC-HC. Go to MPC-HC View menu - Options - Internal Filters - enable HEVC (pic 1) - Video decoder- enable HEVC HW acceleration (pic 2).

Post's attachments

MPC-HC_HEVC_enable.png, 29.92 kb, 646 x 488
MPC-HC_HEVC_enable.png 29.92 kb, 676 downloads since 2016-10-30

MPC-HC_LAV_HEVC_enable.png, 26.68 kb, 624 x 508
MPC-HC_LAV_HEVC_enable.png 26.68 kb, 659 downloads since 2016-10-30

3 Reply by Razgritz (edited by Razgritz 30-10-2016 22:08:23)

Re: MPC-HC + MADVR + SVP doesn't render 10bit HEVC

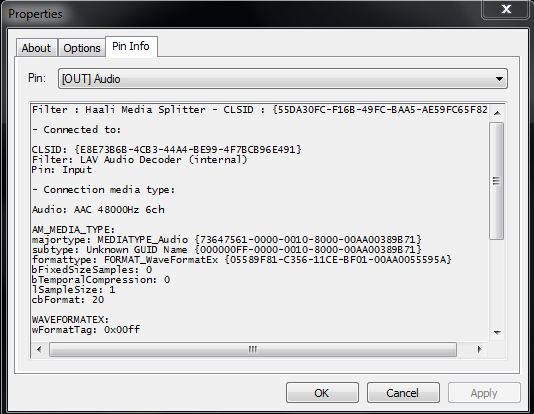

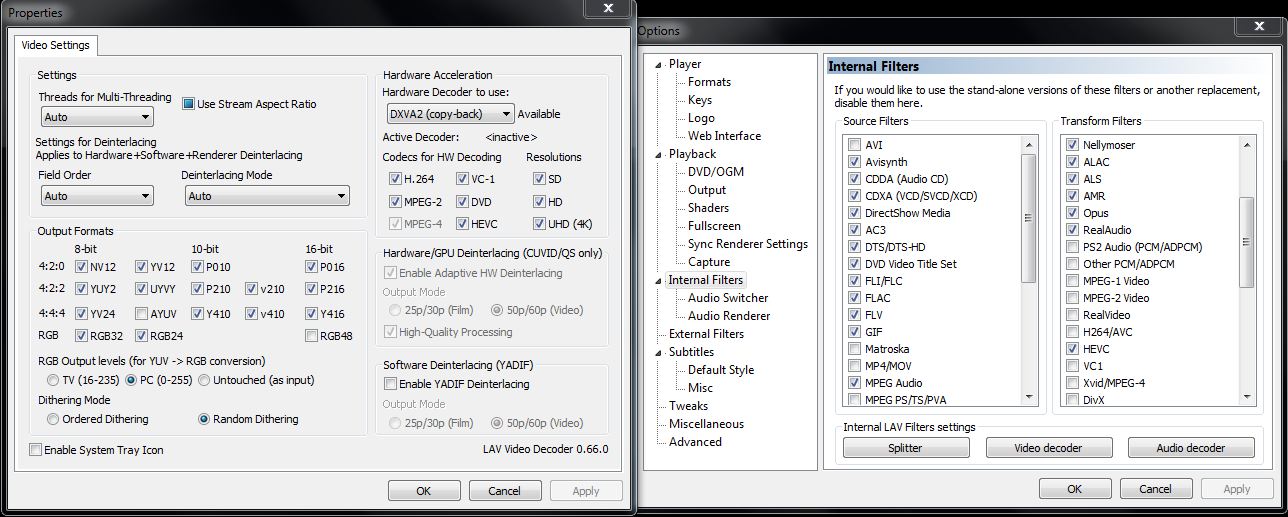

I'm afraid those options were already enabled, it still doesn't render image from the video, only audio... I'm heavily suspecting it's something about Haali, is it need for SVP 4 normal Functioning? Because it keeps launching Haali as the only active filter and no MadVR nor ffdshow whatsoever (like on other movie formats)

Post's attachments

Capture.JPG 146.3 kb, 149 downloads since 2016-10-30

4 Reply by Nintendo Maniac 64 (edited by Nintendo Maniac 64 31-10-2016 04:47:17)

Re: MPC-HC + MADVR + SVP doesn't render 10bit HEVC

Razgritz wrote:

Haali, is it need for SVP 4 normal Functioning?

No, it is not necessary nowadays (it predates even Windows Vista).

Re: MPC-HC + MADVR + SVP doesn't render 10bit HEVC

I can now confirm that the problem was indeed Haali Media Encoder. Once I uninstalled it, 10bit HEVC played flawlessly with SVP + madVR + ffdshow! Thank you guys for your assistance!
